Description

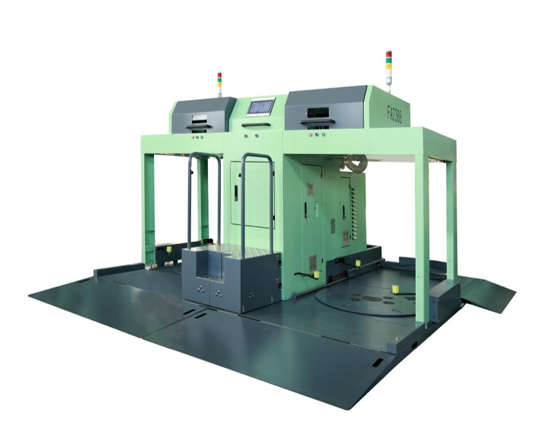

This model is the upgraded product of VCRO automatic winder .It adopts new industrial design with advanced features
such as high quality, high efficiency, intelligent precision control , anti-tangling technology, intelligent automation and
cutting-edge electrical control system, etc. It can realize the functions of automatic batch change, automatic tube
borrowing, multiple head production and individual drop, etc., which ensures that continuous production can be realized
after the automatic winder changes the varieties, and it makes the yarn better in quality, higher in production efficiency and
more convenient in maintenance.

High Quality Package Shaping
This product integrates a high-precision yarn detecting sensor, utilizing infrared detection and an environment
compensation algorithm to ensure precise identification and removal of yarn defects, maintaining a measurement accuracy
of +0.3%, thereby ensuring even yarn tension and superior packaging quality. It features a rear-end stabilization mechanism
that minimizes bobbin shaking for well-formed yarn packages. Additionally, it adopts an intermittent anti-stacking
technology and a closed-loop tension control system to dynamically adjust yarn tension for stable output. The electronic
yarn clearer oversees yarn quality throughout the winding process, with distinct settings optimizing yarn joint quality. The
centralized air splicer enhances splicing quality and appearance consistency across a wide range of yarn types, including
special varieties.
High Efficient Bobbin Processing
Experience enhanced yarn processing with our revamped system. Featuring rapid 6-8 second knotting cycles, a single motor
design for stable bobbin handling, arad automatic yarn centering for superior yarn quality. Real-time yarn tail monitoring
and optimized air door control boost yarn picking success. Our precision vertical suction device and vortex blowing system
increase yarn head picking rates up to 50 pieces/min. Supports up to 72 spindles, increasing yarn production by 10% while
ensuring 99.99% bobbin plug success.
Super Intelligent Work Of Whole Machine
Revolutionize yarn processing with our intelligent single spindle display panel. It indicates fault types for quick resolution,
boosting efficiency. Auto-restarts on bobbin arrival, eliminating manual intervenition. Our robust electric control system
enables remoteoperation, maintenance, and self-diagnosis. Doffing carriage boasts 95% success rate, reaching 60m/mirwith
a 13.5s cycle
